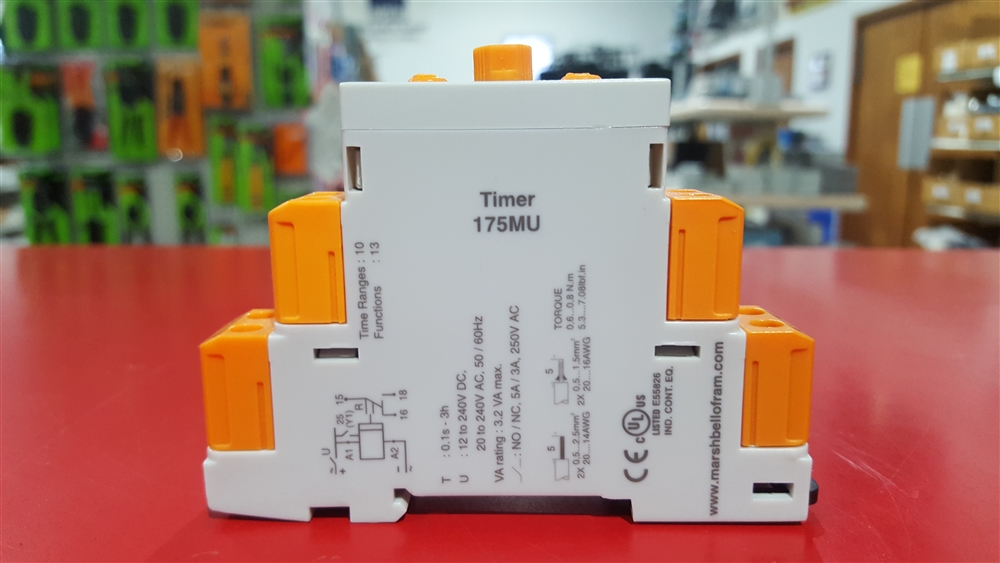

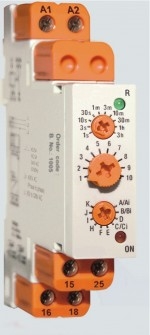

MULTI-FUNCTION DIN RAIL ANALOG TIMER
ATC Diversified 175MU

Alternative Views:
Our Price: $30.56
Price Per: Each

Quantity in Stock:4

Product Code: 175MU
Qty:

Description Specifications

The low-cost, compact timer comes standard in a 17.5 mm DIN rail mount housing with a 5 amp SPDT relay output contact configuration and user-selectable time ranges, from 0.1 second up to three hours. In addition, the unit is easily configured via its front knobs for time range, time scale and mode setting. The ATC Model 175MU is both UL listed and CE certified.

The Model 175MU DIN Rail Mount Multifunction Industrial Timer offers a universal supply voltage of 20-240 VAC (50/60 Hz) and 12-240 VDC, 13 unique functions, and 10 timing ranges within a single unit.
