MULTI-FUNCTION DIN RAIL TIMER with LCD DISPLAY
ATC Diversified 175MD

Alternative Views:
Our Price: $52.06
Price Per: Each

Quantity in Stock:10

Product Code: 175MD
Qty:

Description Specifications

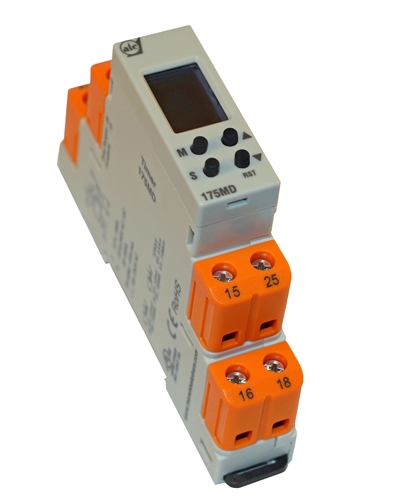

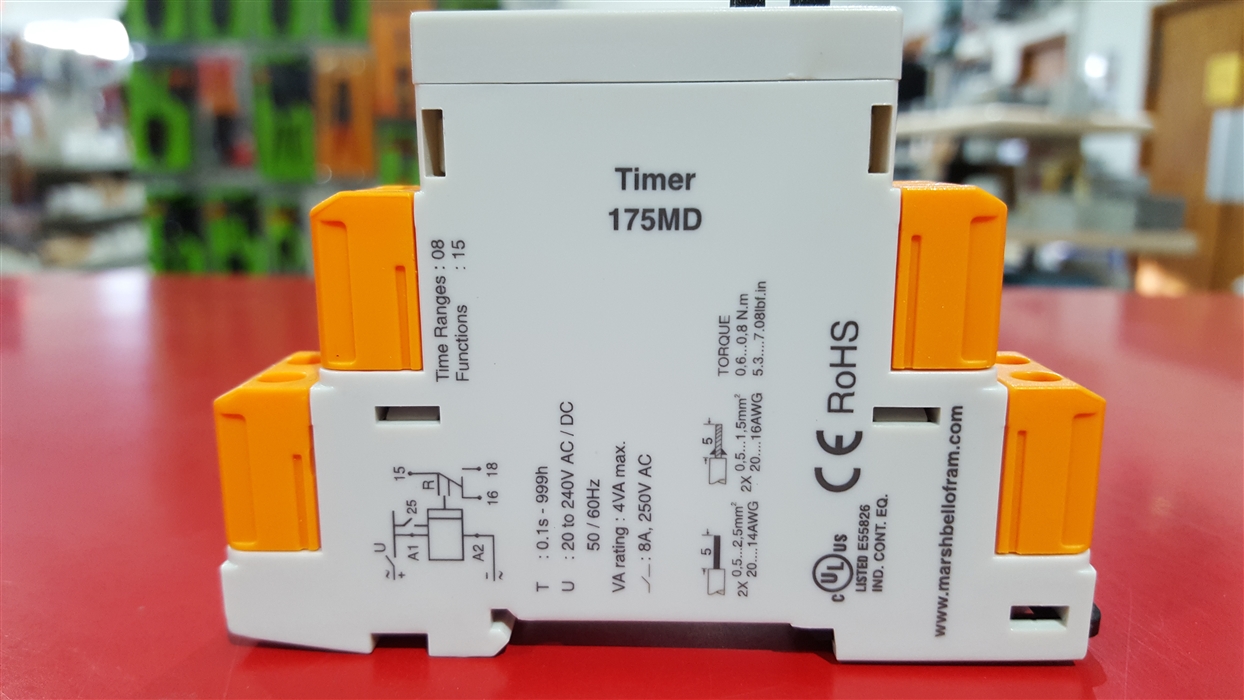

The low-cost, compact timer comes standard in a 17.5 mm DIN rail mount housing with an 8 amp SPDT relay output contact configuration and user-selectable time ranges from 0 to 999 seconds, minutes and hours. In addition, the unit is easily configured via its front keypad for time range, time scale and mode setting. The Model 175MD is both UL listed and CE certified.

The Model 175MD DIN rail mount multi-function timer features a universal supply voltage of 20-240 VAC (50/60 Hz) and 20-240 VDC. It also offers 15 unique timing functions and 8 unique timing ranges, with keypad setting and display capabilities, all within a single unit.
